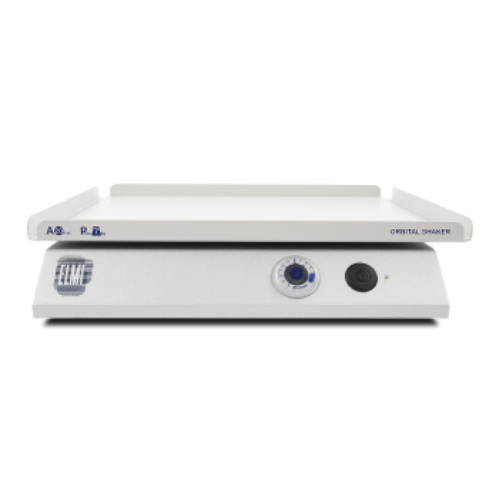

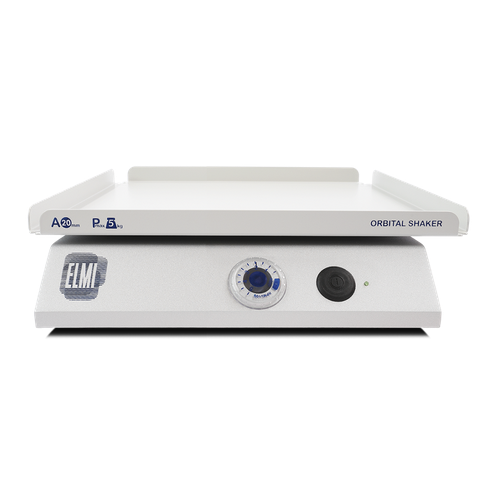

Orbital Shaker, analog

Exceptionally flexible, reliable and powerful orbital shakers.

These orbital shakers are powerful units suitable for continuous operation.
The shaker is designed for mixing components in various types of test tubes, flat-bottomed dishes, flasks, Petri dishes, etc.

The analogue shakers are available in four versions.

*Please refer to the technical data for the corresponding order number.

Request a quote

Orbital Shaker S-Series

To meet your specific laboratory requirements, they offer a wide range of accessories.
S-Shaker models are characterized by high reliability and long service life.

Features

Optimized rotation amplitude for intensive mixing
High performance stepper motor with control system
Stepless control of the rotation speed
Wide range of holders and accessories
Suitable for continuous operation

Model	S-10 M	S-20 M	S-10 L	S-20 L
Order No.	105.2090	105.2091	105.2092	105.2093

Size working platform	355 x 235 mm	355 x 235 mm	415 x 295 mm	415 x 295 mm
Maximum load	5 kg	5 kg	7 kg	7 kg
Amplitude of rotation	10 mm	20 mm	10 mm	20 mm
Rotation type	orbital	orbital	orbital	orbital
Rotation speed	1 - 500 rpm	1 - 300 rpm	1 - 500 rpm	1 - 300 rpm
Ambient temperature	+4 up to +45°C	+4 up to +45°C	+4 up to +45°C	+4 up to +45°C
Rel. humidity (at 20°C)	max. 80 %	max. 80 %	max. 80 %	max. 80 %
Power supply (adapter)	DC 24 V, 1 A	DC 24 V, 1 A	DC 24 V, 1 A	DC 24 V, 1 A
Dimensions shaker (W x D x H)	360 x 280 x 100 mm	360 x 280 x 100 mm	415 x 365 x 100 mm	415 x 365 x 100 mm
Weight shaker	5.4 kg	5.7 kg	7.7 kg	8.7 kg
