Mini-Zentrifuge Microspin-12

Microspin 12 is a compact desktop centrifuge designed for biomedical laboratories.

The external power supply unit allows operation of Microspin 12 in cold rooms (at ambient temperatures from +4°C to +40°C).

Applications:

Extracting RNA/DNA samples
Sedimentation of biological components
Biochemical and chemical analysis of microsamples

Request a quote

High-Speed Centrifuge

A brushless motor provides noiseless performance at the maximal speed and long service life. An angular rotor is designed for accommodation of 12 Eppendorf microtubes and spin columns.

The rotor is made of aluminium, it is equipped with fixing lid and included in the standard specification of the centrifuge. Constant airflow around the rotor reduces risk of samples overheating during operation.

Metal protective inserts inside the casing and lid, automatic imbalance switch-off and locking of a lid provide safe operation.
Completion of centrifugation is indicated by a sound signal.

The external power supply unit allows operation of Microspin 12 in cold rooms (at ambient temperatures from +4°C to +40°C).

Display:

A display simultaneously shows actual and set values for:

Centrifugation time
Set and actual speed values
Relative centrifugal force

Order No.	109.0070
Speed control range	1000 – 14.500 rpm (increment 100 rpm)
Relative centrifugal force control range	50 – 12.400 × g
Max. Capacity	Depending on Adapter: 12 x 0.2 / 0.5/ 1.5 / 2 ml
Digital time setting	15 s – 30 min (increment 15 s – 1 min)
Timer sound signal	Yes
Acceleration time up to 14.500 rpm	20 s
Slowdown time, not more	10 s
Display	LCD, 2 lines
Safety: Rotor imbalance diagnostics: automatic stop, “IMBALANCE” warning	Yes
Overall dimensions (W × D × H)	200 x 240 x 125 mm
Weight	3.5 kg
Input current/power consumption	24 V, 2.5 A / 60 W
External power supply	Input AC 100 -240 V 50/60 Hz, Output DC 24 V

Standard set (included in delivery)

Built-in rotor MSR-12 (12 places for microtubes 1.5/2 ml) with protection lid MSL-SC and adapters A-02, A-05

Accessories (option)

Adapter	Description

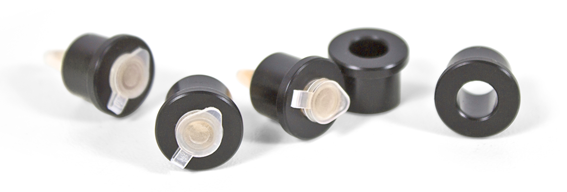

A-02	12 pieces for 0.2 ml microtubes

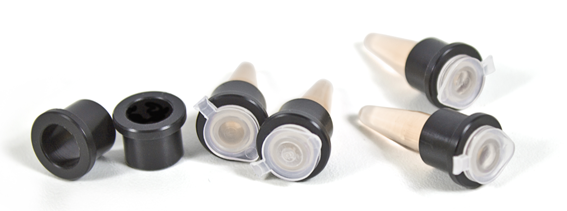

A-05	12 pieces for 0.5 ml microtubes
MSL-SC	Spin Column Protector Higher rotor lid to accommodate spin columns
