Rotator MultiBio RS-24

MultiBio RS-24 is a programmable rotator and performs multiple types of motion in one module.

Typical Applications

Hybridization reactions
Cell growing
Soft extraction and homogenisation of biological components in solutions
Reactions of binding and washing of magnetic particles

MultiBio RS-24 Shaker

Multi-Rotation option of RS-24 substantially expands possibilities and enhances efficiency of sample preparation for the examined materials and allows adjusting the mixing procedure according to the individual tasks.

With seven different platforms (see technical data)

Microprocessor control allows

Vertical rotation of the platform (1)
Reciprocal rotation (2)
Vibration (3)
Pause (P)

These three motion types can be performed separately, pairwise and in cycles, periodically repeating the sequence of three motion types.

During the stop mode the platform does not perform extra turnover and stops in a horizontal plane. Additionally there is a possibility of setting the plane with respect to which platform oscillates vertically or horizontally.

Application in Incubator/Cold Room

Multi Bio RS-24 is suitable for operation in cold rooms, incubators (except CO₂ incubators) and closed laboratory rooms.

Requirements:
Ambient temperature: +4°C up to +40°C
A non-condensing atmosphere
Max. relative humidity: 80%

Low voltage external power supply (12 V) provides electrical safety in humid environment.

Model	Multi Bio RS-24
Order No. Multi Bio RS-24 incl. standard platform PRS-26	105.2380
1 Vertical rotation
Speed setting range	1 - 100 U/min (increment 1 rpm)
Rotation movement	360°
Time setting	0 - 250 s
2 Reciprocal rotation (rocking motion)
Speed setting range	1 - 100 rpm (increment: 1 rpm)
Tilt angle range	1 - 90° (increment 1°)
Time setting	0 - 250 s
3 Vibration
Tilt angel range	0 - 5° (increment 1°)
Pause/time setting range	0 - 5 s
General Technical Data
Digital time setting	1 min–24 h/non-stop (increment 1 min)
Timer sound signal	Yes
Max. loading	0.5 kg
Overall dimensions (W x D x H)	365 × 195 × 155 mm
Weight	1.7 kg
Input current/power consumption	12 V, 660 mA/8 W
External power supply	Input AC 100–240 V 50/60 Hz; Output DC 12 V

Available platforms

PRS — series platforms are equipped with universal rubber clamps for different size tube fixation;
PRSC — series platforms have metal clamps able to hold heavier solutions (e.g. soil, sand).

Platform	Max. Load/ Diameter	Volume
PRS-26 included in scope of delivery	26 tubes with Ø 10-16 mm	1,5 to 15 ml Tubes
PRS-5/12 option	5 and 12 tubes with Ø 20-30 mm and Ø 10-16 mm	50 ml (5 Stk.) and 1,5-15 ml (12 Stk.)
PRS-10 option	10 tubes with Ø 20-30 mm	up to 50 ml
PRSC-22 option	22 tubes with Ø 25-30 mm	up to 15 ml
PRS-1DP option	Platform for microtiterplates and racks for tall tubes (z. B. Thermo 3741MTX, 3742MTX, 3744MTX).	0.5 ml and 1 ml

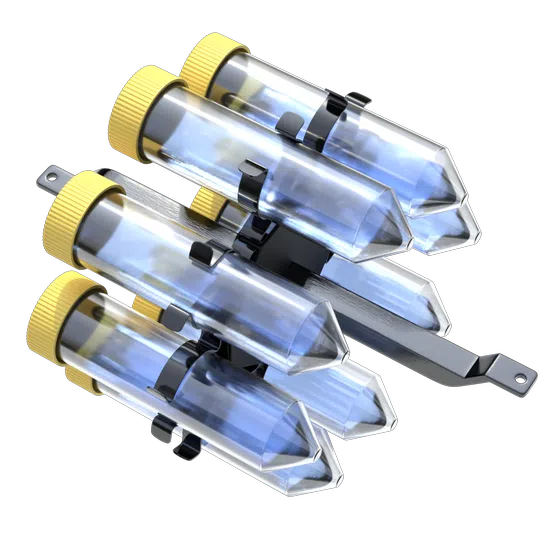

M-8/50 opotion	8 tubes with Ø 20-30 mm	up to 50 ml
PRSC-10 option	10 tubes mit Ø 20-30 mm	up to 50 ml
