Swing-Out Centrifuge CM-8S

Elmi CM-8S swing-out centrifuge certified according to ISO 13485.
Benchtop centrifuge CM-8S from Elmi-Tech with lid open.
Display of the Maxi Zentrifuge CM-8S.

new

The CM-8S centrifuge is a very powerful tabletop centrifuge.

It has a robust motor with 4500 RPM and 3735 RCF (G Force).

CM-8S is maintenance-free and requires no assembly or professional set-up.

Request a quote

Elmi Bench-Top Centrifuge CM-8S

The CM-8S centrifuge is the perfect addition to your research, clinical, or diagnostic laboratory.

The CM-8S meets the requirements of IEC 61010-1, is CE-marked, and certified according to ISO 13485.

Specifications

  • 11 customizable programs
  • User-friendly touchscreen interface
  • Fast rotor acceleration
  • Easy rotor change
  • Stainless steel inner container
  • Transparent safety lid
  • Rotor recognition software
  • Continuous time and speed adjustment
  • Speed ​​and G-force display
  • Variable braking speed
  • Cooling function (chamber temperature max. 5°C above room temperature)
  • Unbalance sensor
  • Acoustic stop signal
  • 11 optional rotors
  • Maintenance-free
Rotor rotation speed100 – 4.500 rpm
Max. centrifugal force1 – 3735 rcf (G)
Rotor speed step RPM / RCF1
Timer1 sec  – 12 h
Custom user programs11
Number of centrifugal brake levels10
Ambient temperature range+10 up to +40 °C
Relative humidity80 %
Voltage and frequency100 – 240 V; 50/60 Hz
Max. consumable power320 W
Dimensions (L x W x H)431 x 410 x 247 mm
Weight14.7 kg

Optional Rotors Centrifuge CM-8S

Rotor 6M

Rotor 8M
For 12 x 12 ml tubes

Maximum tube size:
17. 5 x 115 mm (Ø x L)
Max. speed: 4500 rpm
Material: Stainless steel

Autoclavable at 121°C

Rotor 6M.05

Rotor 8M.05
For 12 x 15 ml tubes

Maximum tube size:
17.5 x 140 mm (Ø x L)
Max. speed: 4500 rpm
Material: Stainless steel

Autoclavable at 121°C

Rotor 6M.02

Rotor 8M.02
For 12 x 12 ml tubes
and 12 x 15 ml tubes

Maximum tube size:
17.5 x 120 mm (Ø x L)
17.5 x 140 mm (Ø x L)
Max. speed: 4500 rpm
Material: Stainless steel

Autoclavable at 121°C

Rotor 8M.01

Rotor 8M.01

For 4 x 50 ml tubes

Maximum tube size:
30 x 135 mm (Ø x L)
Max. speed: 4500 rpm
Material: Stainless steel

Autoclavable at 121°C

Rotor 8M.03

Rotor 8M.03

For 4 x 50+ ml tubes

Maximum tube size:
44 x 125 mm (Ø x L)
Max. speed: 4500 rpm
Material: Stainless steel

Autoclavable at 121°C

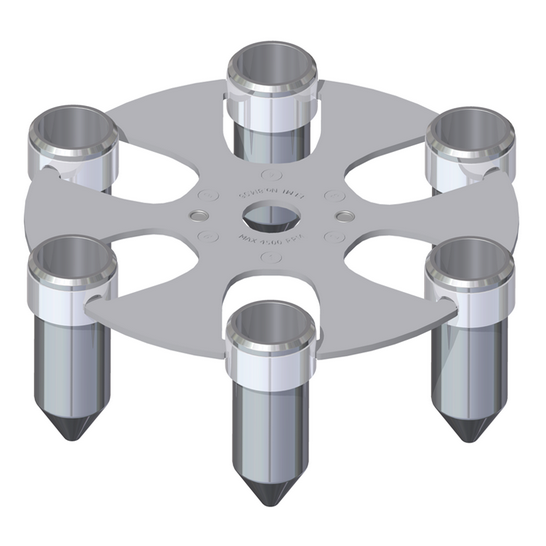

Rotor 8M.06

Rotor 8M.06
For 6 x 50 ml tubes

Maximum tube size:
30 x 135 mm (Ø x L)
Max. speed: 4500 rpm
Material: Stainless steel

Autoclavable at 121°C

Rotor 8M.07

Rotor 8M.07
For 4 x 50 ml

Maximum tube size:
30 x 135 mm (Ø x L)
Max. speed: 4500 rpm
Material: Stainless steel

Autoclavable at 121°C

Rotor 8M.08

Rotor 8M.08
For 6 x 50 ml tubes

Maximum tube size:
30 x 120 mm (Ø x L)
Max. speed: 4500 rpm
Material: Stainless steel

Autoclavable at 121°C

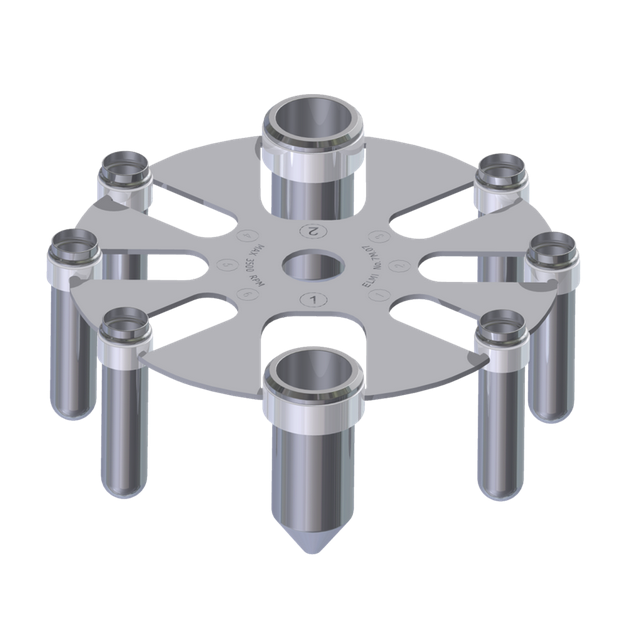

Rotor 8M.09

Rotor 8M.09
For 6 x 15 ml tubes
and 2 x 50 ml tubes

Maximum tube size:
for 15 ml:
17.5 x 115 mm (Ø x L)
for 50 ml:
30 x 135 mm (Ø x L)
Max. speed: 4500 rpm

Autoclavable at 121°C

Rotor 8M.10

Rotor 8M.10
For 4 x 15 ml tubes
and 2 x 50 ml tubes

Maximum tube size:
for 15 ml:
17.5 x 140 mm (Ø x L)
for 50 ml:
30 x 135 mm (Ø x L)
Max. speed: 4500 rpm

Autoclavable at 121°C

Rotor 8M.18

Rotor 8M.18
Universal rotor with anodized aluminium adapter (conical base).

Maximum size tubes:
Two places each with
30 x 130 mm (Ø x L) and
17.5 x 131 mm (Ø x L)
Inbalance tolerance: 3 g
Max. speed: 3500 rpm

Autoclavable at 121°C (20 min)

Spacer VC.01

Spacer VC.01
Polyamide spacer for tubes with a volume of 12 - 15 ml

Dimensions:
16.5 x 20 mm (Ø x L)
Max. speed: 4500 rpm

Autoclavable at 121°C (20 min)

Spacer VC.02

Spacer VC.02
Polyamide spacer for tubes with a diameter of 17.5 ml

Dimensions:
17.5 x 85 mm (Ø x L)
Max. speed: 4500 rpm

Autoclavable at 121°C (20 min)

Spacer

Spacer VC.03
Polyamide spacer for tubes with a diameter of 21.5 ml

Dimensions:
21.5 x 71.5 mm (Ø x L)
Max. speed: 4500 rpm
Autoclavable at 121°C (20 min)
