Shaker Incubator ES-20-80 / Cooling
A flexible and robust incubator with shaking function for many different applications.
Particularly suitable for biotechnological and pharmaceutical laboratories.

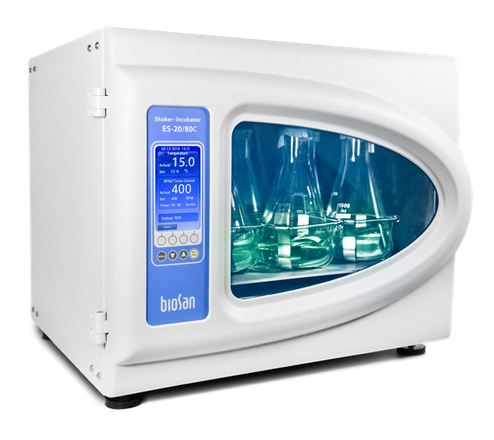

Now also available with cooling function: ES-20/80C
Typical Applications:
- Cultivation of microbial cultures and cell cultures
- Protein expression
- Solubility studies
- General mixing and various other applications in the fields of biology and chemistry.

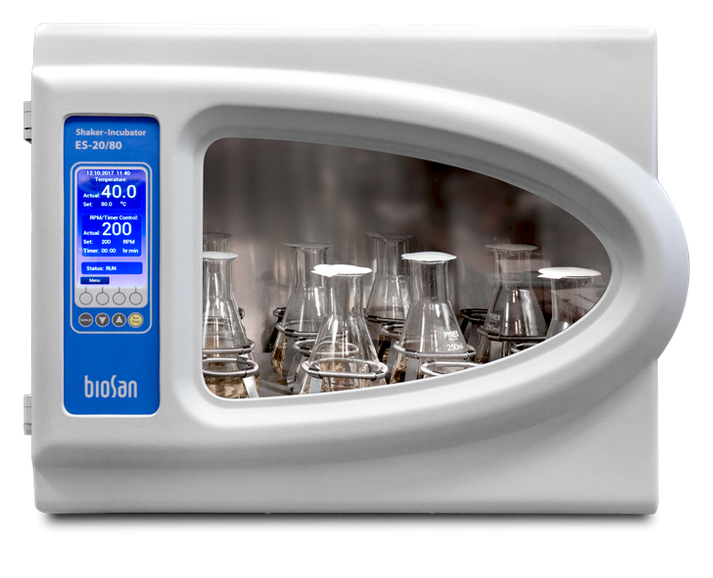

Orbital Shaker Incubator ES-20/80
The unit is equipped with a newly developed triple eccentric mechanism for platform motion that provides supreme balancing characteristics, superior reliability and quiet operation. The achieved stability of the unit during vigorous mixing allows for stacking installation of up to 3 units which enables to save space.
The new display and easy to use user interface provide a clear and intuitive control of parameters and also allow data logging, storage and display over time. Additional features like out of balance sensor and automatic thermostat failure detection make this shaker-incubator an advanced and safe product.
Bluetooth connectivity to PC allows for data management, data logging, parameter control and profiling in a dedicated software that can be requested separately.
A built-in heat-resistant brushless fan provides precise temperature distribution inside the chamber (from 10 °C above ambient up to +80 °C).
The inner chamber is made of stainless steel. State-of-the-art motor, thermal insulation materials and parameter PIDcontrol decrease the energy consumption and make the shaker-incubator highly energy efficient despite its relatively large size.
Model | ES-20/80 | ES-20/80 C |
---|---|---|
Order No. | 104.3540 | 104.3545 |
Figure | ||
Temperature setting range | +25°C... +80°C | +4°C... +80°C |
Temperature control range | 5°C above ambient up to +80°C | 12.5°C above ambient up to 80°C |
Speed control range | 50 - 400 rpm (increment 10 rpm) | 50 - 400 rpm (increment 10 rpm) |
Temperature setting resolution | 0.1°C | 0.1°C |
Temperature stability | ±0.1°C | ±0.1°C |
Temperature accuracy at +37°C | ±0.1°C | ±0.1°C |
Temperature uniformity at +37°C | ±0.3°C | ±0.2°C |
Maximum load | 10.6 kg | 10.6 kg |
Orbit | 20 mm | 20 mm |
Digital time setting | 1 min-96 h / non-stop (increment 1 min) | 1 min-96 h / non-stop (increment 1 min) |
Timer / soundsignal | Yes | Yes |
Display | TFT, 5 inches | TFT, 5 inches |
Overall dimension (W × D × H) | 620 × 530 × 510 mm | 620 × 620 × 510 mm |
Dimensions of the inner chamber (W x D x H) | 460 × 400 × 310 mm | 460 × 350 × 400 mm |
Weight | 48 kg | 50 kg |
Required PC system | Intel/AMD Processor, 1 GB RAM, Windows Vista/7/8/8.1/10/11, USB, Bluetooth | Intel/AMD Processor, 1 GB RAM, Windows Vista/7/8/8.1/10/11, USB, Bluetooth |
Nominal operating voltage | 230 V, 50/60 Hz | 230 V, 50/60 Hz |
Power consumption | 500 W (2.2 A) / - | 810 W (3.7 A) |
