Manual Pipettes - Assist Series
The Assist series are available as a single-channel pipette or as an 8/12-channel with variable volumes.
They are suitable for measuring or transferring volumes from 0.1 μl to 10,000 μl (depending on the model).
Assist series comes in four volume ranges:
- 0,5-10 μl
- 5-50 μl
- 20-200 μl
- 50-300 μl
The pipettes are equipped with a analog counter which shows the pipetting volume.
The volume setting is done by turning the pipetting pushbutton knob or the black adjustment knob in the right direction. The volume range is shown on the pipetting pushbutton.
Manual Pipettes - Assist Series
- Contoured shape of the handle and light weight
- Proven accuracy and precision
- UV resistant & fully autoclavable
- 5 & 10 ml shaft protected by filter
- Available in 8- & 12-channel version
- Colour coded for easy volume identification
- The adjustable ejector height system – to accommodate virtually all brands of tips
- Dual volume setting using the pushbutton or the thumbwheel
- Soft spring system for smooth, effortless pipetting
Common pipettes applications depending on the volume:
2-10 μl
Measurement and transfer of microvolumes,
DNA sequencing and enzyme assay applications.
10-1000 μl
Measurement and transfer of general aqueous solution, acids and bases.
5000-10.000 μl
Measurement and transfer of large volumes.
Maximum Volume of Assist Pipettes
Single channel pipette
AP2 - 2μl
AP10 - 10μl
AP20 - 20μl
AP50 - 50μl
AP100 - 100μl
AP200 - 200μl
AP250 - 250μl
AP1000 - 1000μl
AP5000 - 5000μl
AP10000 - 10000μl
8 channel pipette
AP8-10 - 8 x 10μl
AP8-50 - 8 x 50μl
AP8-200 - 8 x 200μl
AP8-300 - 8 x 300μl
12 channel pipette
AP12-10 - 12 x 10μl
AP12-50 - 12 x 50μl
AP12-200 - 12 x 200μl
AP12-300 - 12 x 300μl
Pipette sets
AP10, AP20, AP200, AP1000
AP10, AP100, AP1000, AP5000

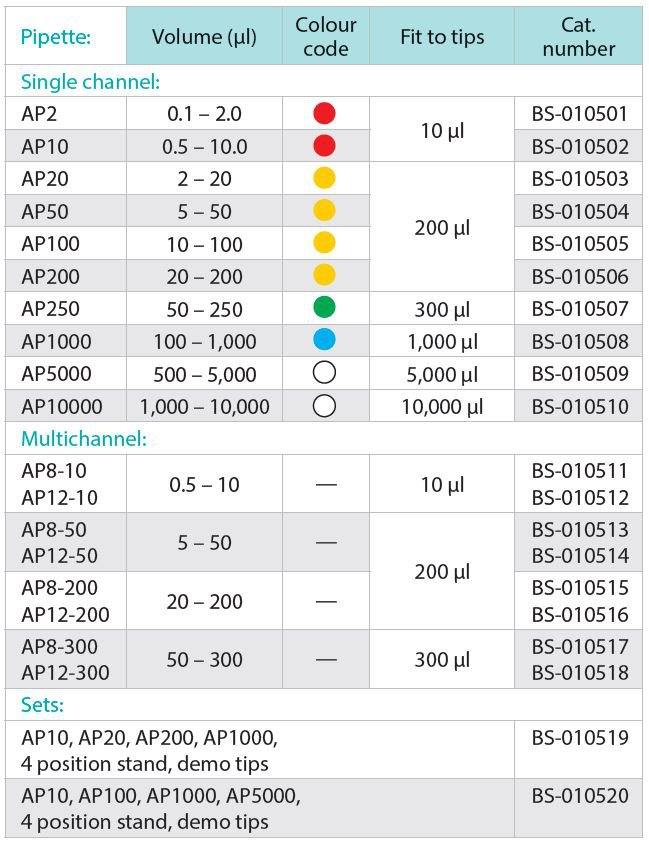

Models Assist Pipettes
