Mini Freezers KBT

KBT mini coolers are small and practical. They stand directly at the workplace.

So that you can have your samples cooled at any time!

Temperature range:

Models KBT 08: -50°C to -30°C (8 litres)
Model KBT 18: -40°C to 20°C (18 litres)

Please refer to the technical data for the exact item number.

Request a quote

Laboratory Freezer for Small Samples

The ideal solution when small samples directly cooled in the workplace should be available.

Refrigeration unit: low noise , fully hermetically sealed, air-cooled, low maintenance
Casing parts made of stainless steel
Insulated stainless steel hinges and hinged lid with magnetic seal
Ram protection ring going over and under

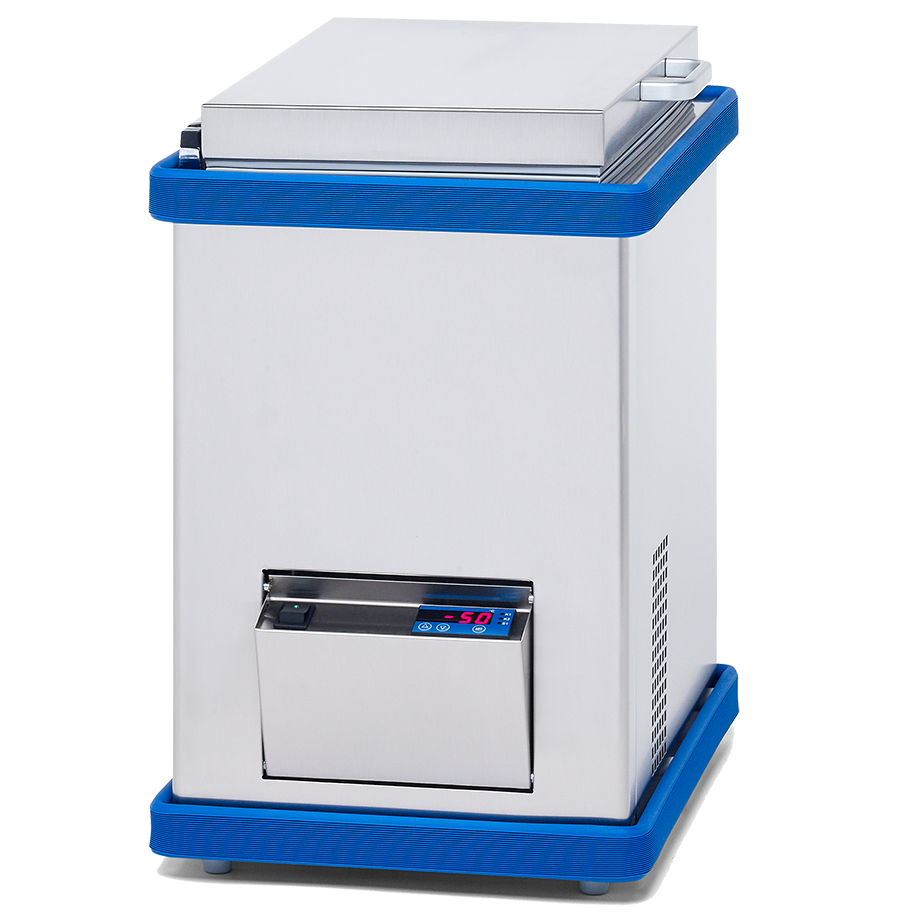

Control ST71:
- Electronic temperature control with LED display
- Visual and acoustic alarm signal

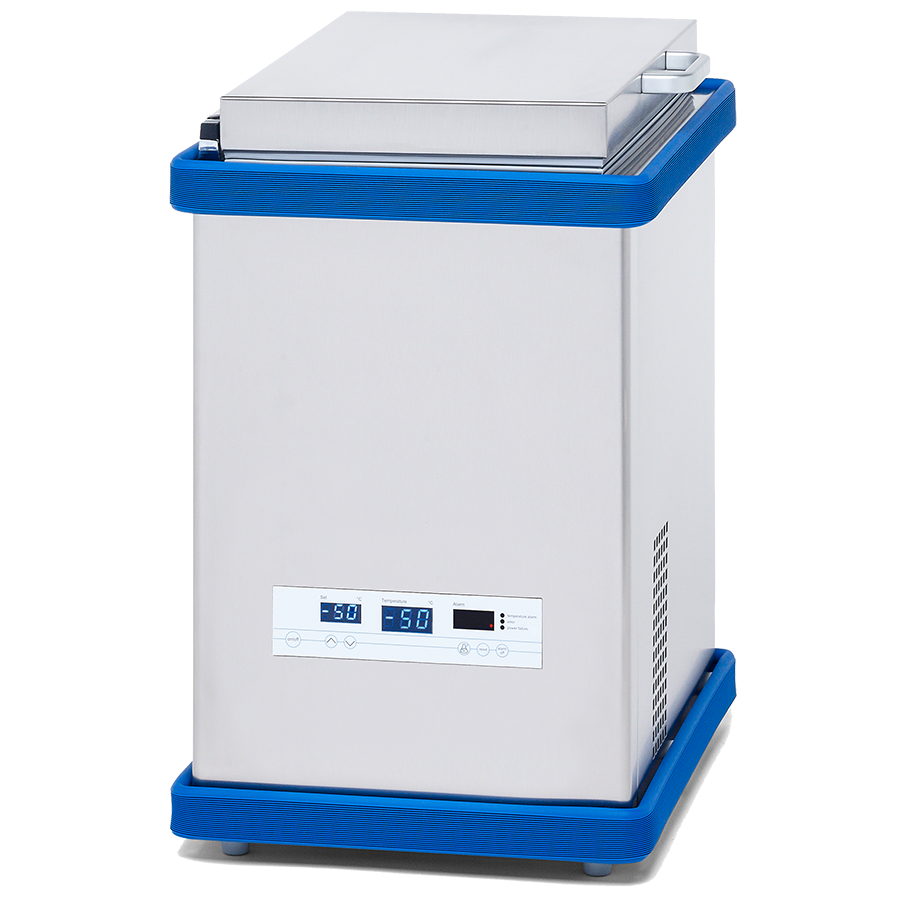

Control ST100:
- Microprocessor-controlled adjustment using a membrane keyboard
- Clearly legible LED display
- Protection against inadvertent activation
- Maximum reliability thanks to an alarm system that is separate from the mains, with battery capacity for approx. 72 hours
- Display of the maximum temperature reached in the interior area during the fault
- Visual and acoustic alarm signal
- Interfaces
- Potential-free contact with the connection to an external alarm system
- RS485 interface
- 100 mV/K output for connecting a temperature recording system

Model	KBT 08-51	KBT 08-51 ST100	KBT 18-41 U ST100
Order No.	104.5052	104.5053	104.5054
Figure
Temperature range	-50°C to -30°C	-50°C to -30°C	-40°C to -20°C
Control accuracy	+/- 1 K	+/- 1 K	+/- 1 K
Control	ST71	ST100	ST100
Capacity	8 litres	8 litres	18 litres
Circulation air fan	-	-	yes
Interior (W x D x H)	150 x 300 x 200 mm rounded corners	150 x 300 x 200 mm rounded corners	300 x 270 (320) x 200 mm rounded corners reduced by circulation air fan
Weight	36 kg	36 kg	50 kg
Ambient temperature	+10°C to +32°C	+10°C to +32°C	+10°C to +32°C
Electrical connection	230 V / 50 Hz	230 V / 50 Hz	230 V / 50 Hz
